Ideas 2 Form

If you can dream it, we can make it

Sketch your design, or call us, and we'll render a drawing and Custom Build
your design. Pick up from our Takanini manufacturing plant, or have us deliver
to your job site.



Fabricated to your specification



Saddle Flashings

Curved Flashings

E2 Flashings



Copper Finishing

Custom Finishes by Top Quality Metal Craftsmen



Fabricate to Order


We can deliver and/or install

Ask us Anything

Let us turn your ideas into finished products

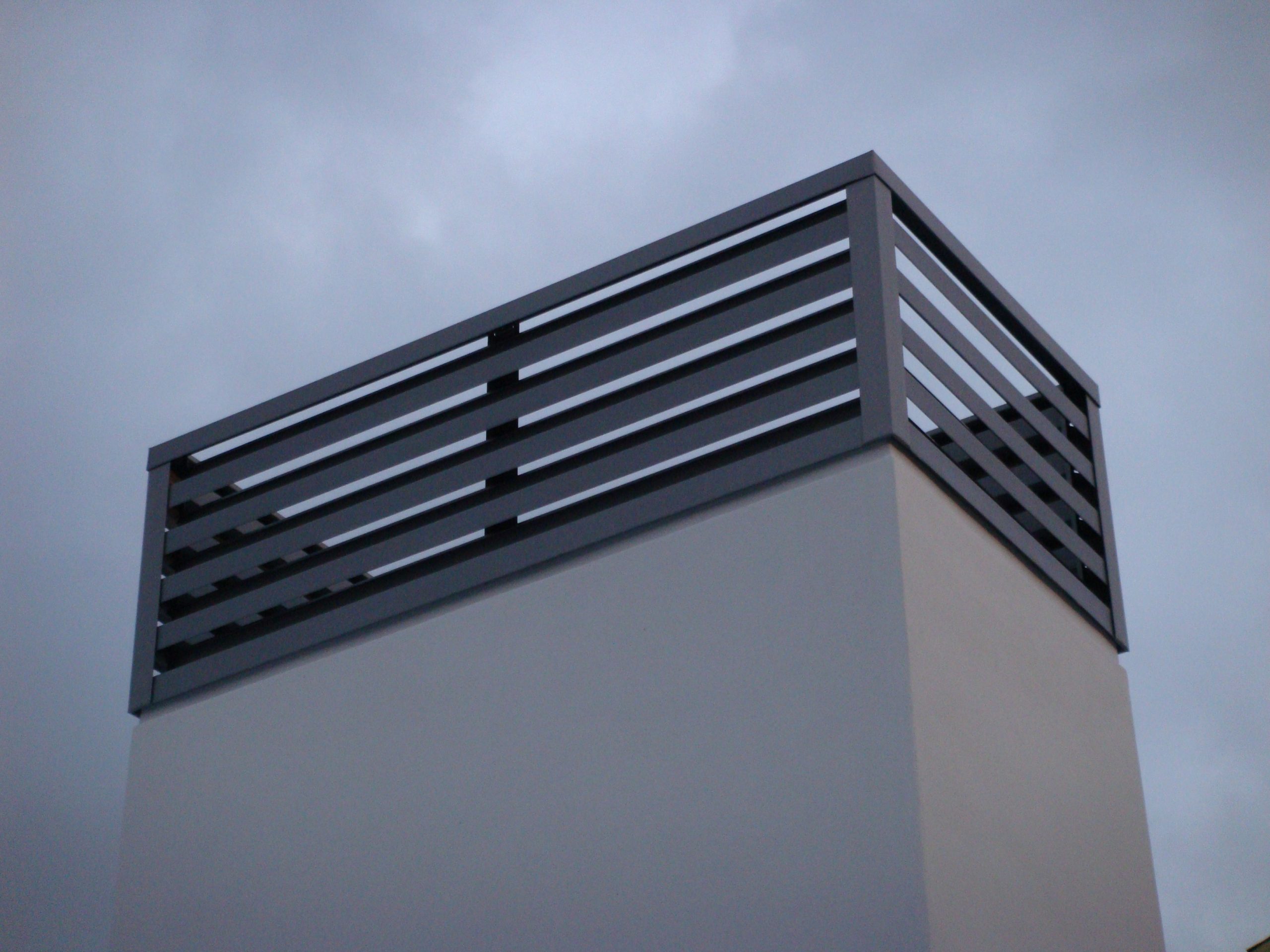

Custom crafted sheet-metal goods including Rainwater heads, intricate louvre chimney and stunning fabricated entrance doors

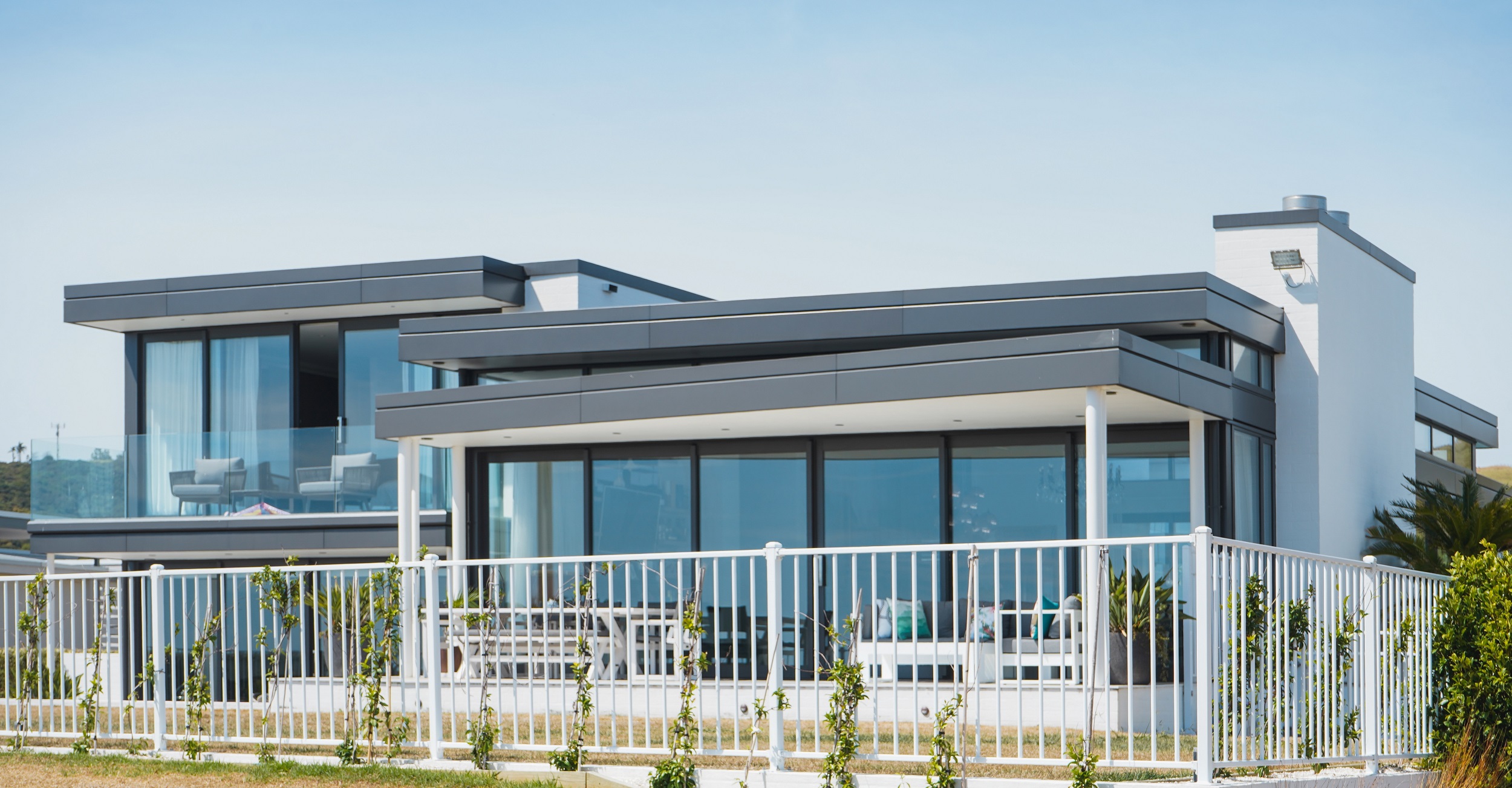

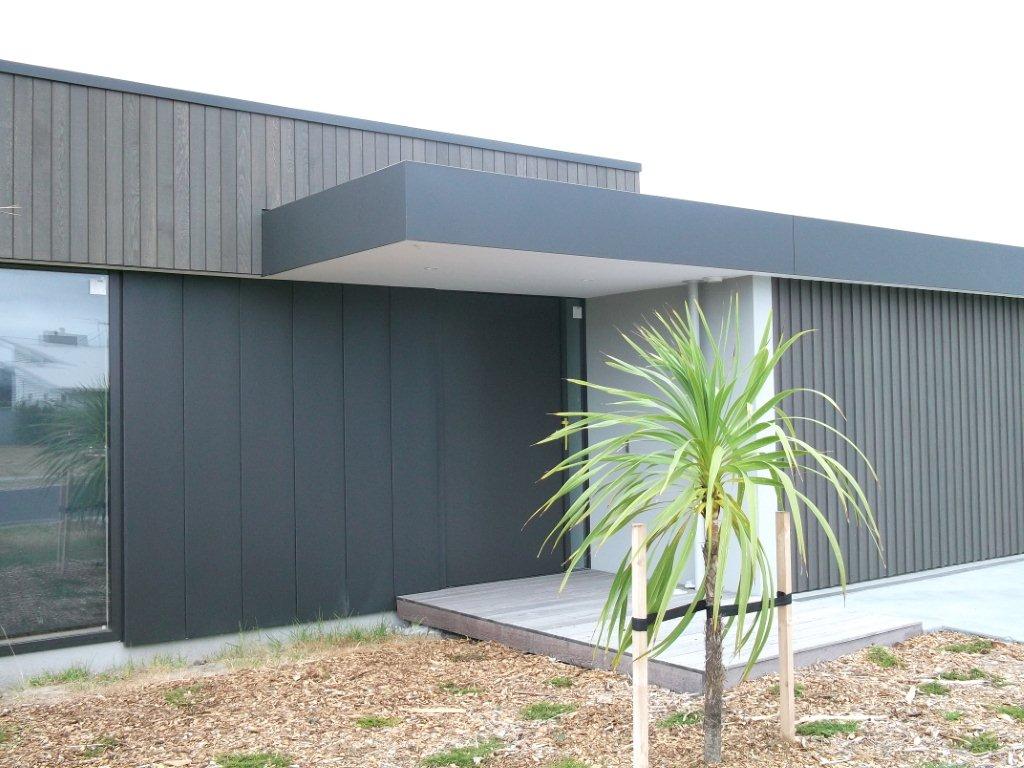

Some examples from our Portfolio

Founded in 2006, FFC has 10 years experience working with some of NZ’s top architects and builders. Our work can be found on a wide range of projects, from Auckland’s Art Gallery (notable for it’s precise craftsmanship throughout) to homes of high-net-worth individuals.

Here’s a handpicked selection to tantalize your creative taste-buds

Latest News from FFC

  • Copper Capping

Capping off your project.

December 8, 2015
The top of the wall or the edge of the roof are not only the...
  • Protective Film

Material Preservation

October 27, 2015
The importance of leaving the film in place until the job is finished. Part 5...
  • Unplanned Extras

Skope Creep

October 20, 2015
Adding extras which were never on the plans Part 4 of 5 on the art...

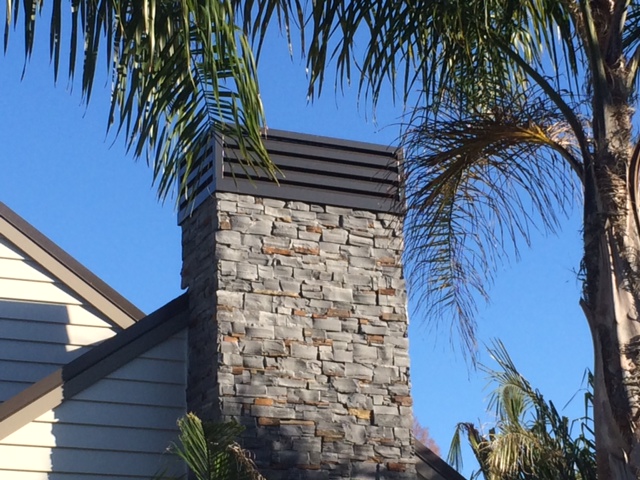

  • Chimney Cowl

Onsite Tweaks

October 13, 2015
Some aspects can’t be planned in the factory, and require delicate onsite adjustments. Part 3...

What Buyers Say About Us

Email Murray

For more information or pricing email Murray Waters now:

We're happy to help you with your foldings, flashings and cappings. Just let me know how we can help...

Choose the Best Metal for Your Job

The beauty of a metal finish is that there’s a wide range of options you can choose to perfectly match your project. Here’s some key considerations for each:


There’s two basic styles of aluminium:

  • ANODISED ALUMINIUM: a controlled electro-chemical process that uniformly creates a thick oxide film as part of the aluminium itself.  The specification for the thickness of the anodised oxide film depends on the required application and location, and is measured in microns.  Generally, the greater the thickness of oxide, the greater the ability to withstand harsh corrosive conditions.
  • PAINTED ALUMINIUM: Uses type 5052 or 5005 marine grade aluminium alloy substrates, polyester primer, a choice of waterborne, polyester or 70% PVF2 top coats, AR8™ and ARX™ are designed for use in severe and very severe marine environments and are ideal for cladding.


Zinc is rapidly rising as the material of choice in up-market designer offices and homes. When you choose Zinc Cladding for your home, there’s a number of finishes you can choose from…

  • NATURAL ZINC: Gradually changes colour over time
  • PRE-WEATHERED QUARTZ TITANIUM ZINC: Chemically treated to give full natural weathered look right from day one
  • ANTHRA TITANIUM ZINC: Almost ancient looking dark patina
  • TEXTURED TITANIUM ZINC: Treated imperfectly, the patina takes on a textured look.


As copper ages, it changes colour from that bright reddish coppery colour to a light green hue. This process could take decades, even centuries, under natural conditions. But today you can select the degree of aging depending on your personal taste and the natural environment for your home. There’s three basic variants you can choose from:


  • STANDARD COPPER: has a bright red surface, which will weather over time, turning brown and then green.
  • BROWN COPPER: a dark oxidised (pre-weathered) copper. It is mainly intended for roofs and exterior wall covering, windows, doors and for decorative purposes.
  • GREEN COPPER: a pre-patinated copper which already appears to have been weathered for decades or even centuries. It can be easily bent and is most commonly used for making panels and cassettes. Green is available in traditional and living surfaces. The living surface has a mottled and lively pattern.

Stainless Steel

At FFC we recommend Grade 445M2, which is easier to work with than austenitic stainless steels such as 316. The much lower rate of work hardening gives lower forming loads, and less springback. Grade 445M2 also behaves like carbon steel in cutting operations: it gives cleaner cuts, with less distortion, and much better tool life.


These advantages have been crucial for the introduction of the grade to uses like roll formed roofing and cladding, and expanded metal. It is also very useful for perforating into acoustic screens etc.

We specialize in a range of custom-made sheet metal goods including everything from rainwater heads, intricate louver chimneys and stunning custom fabricated entrance doors.

We use the latest technology combined with 35 years of experience, enthusiasm, and quality suppliers to provide an excellent service to our customers.

Our service can be all inclusive from initial consultation, manufacturing through to installation. Whether it be manufacturing your design or starting from a concept our technical team can deliver your project.

Our business is built on reputation and we get the job right first time, supplying the best products fabricated from the highest quality materials at great value for money. FFC and our highly skilled team are committed to providing the highest standards of workmanship to both domestic and commercial customers That’s why our customers recommend us in Auckland and surrounding areas.

Are you a licensed building practitioner? If so, please include your license number to ensure you receive our trade discounts.

We support the roofing trade. It is experts like you whoset the standards the industry must live up to. It is you who drive technology and innovation. And it’s you who earn your living subcontracting your services. For thes reasons we take very good care of you. Be sure to mention your speciality when you call us.

What Our Clients Use us for...

Project Analysis and Reccommendations 65%
Design and Technical Drawings 80%
Cutting 100%
Folding & Fabrication 100%
Installation 55%
Maintenance and Repairs 35%

Let us talk you through your next job…

Next time you’re working on a complex job, give me a call on (021) 227 8100 and I’ll let you know how we can take all the risk out of it for you.

You Sketch it, we’ll Render it and Price it

If you know the measurements, the folds, and the angles, we’ll do a computer-rendered drawing, and give you full pricing information for you to discuss with your client.



Murray Waters, GM

Precision Engineered Solutions

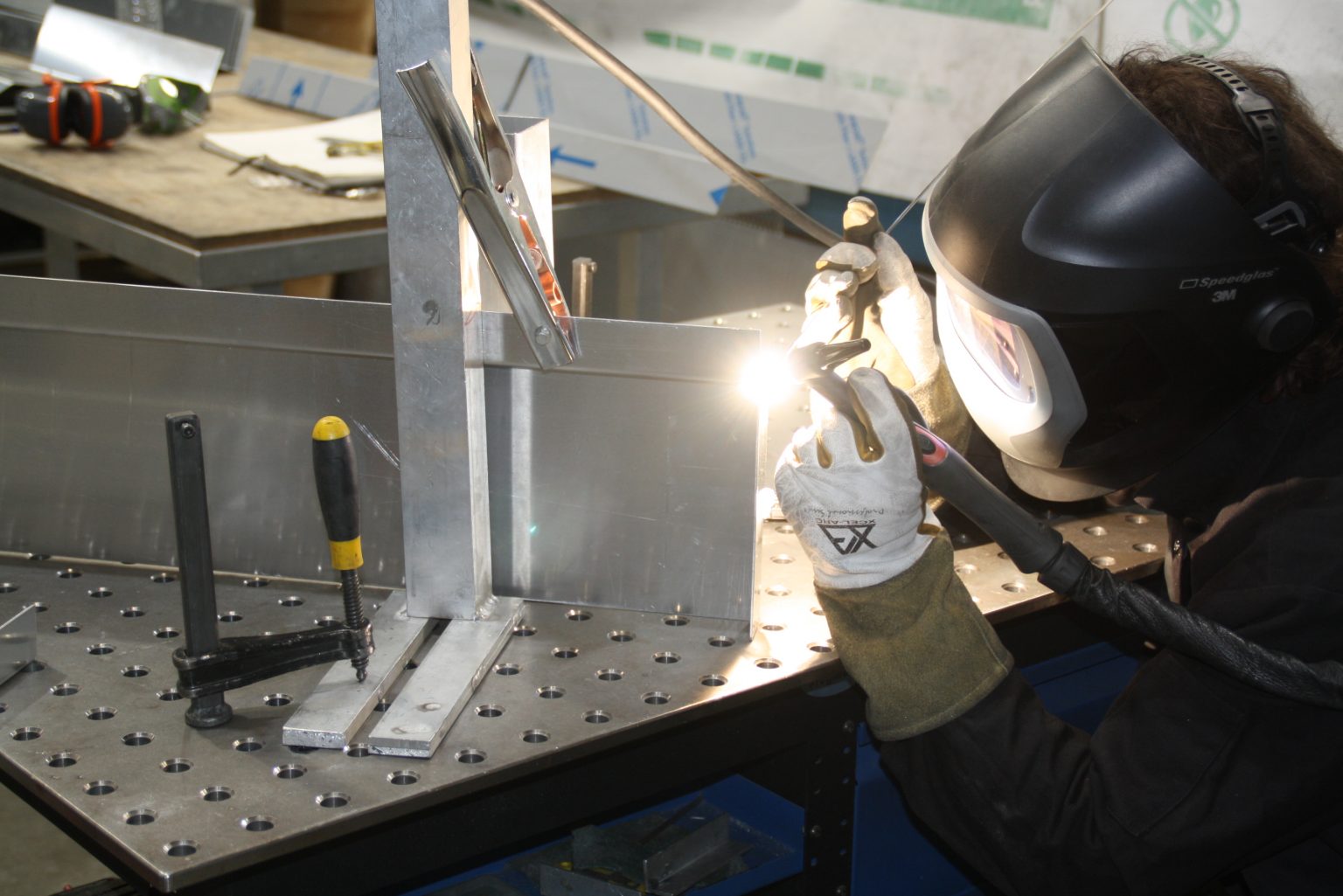

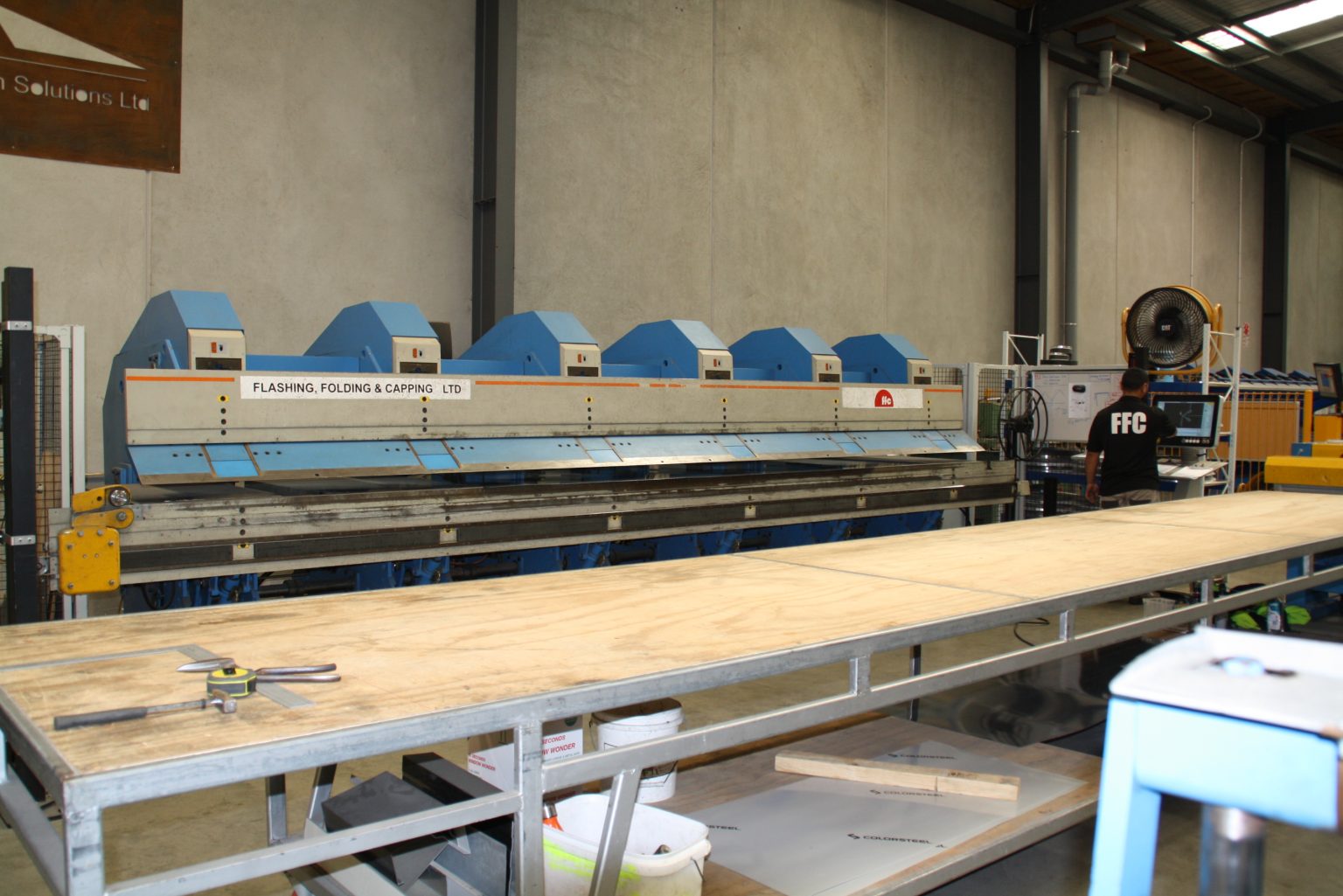

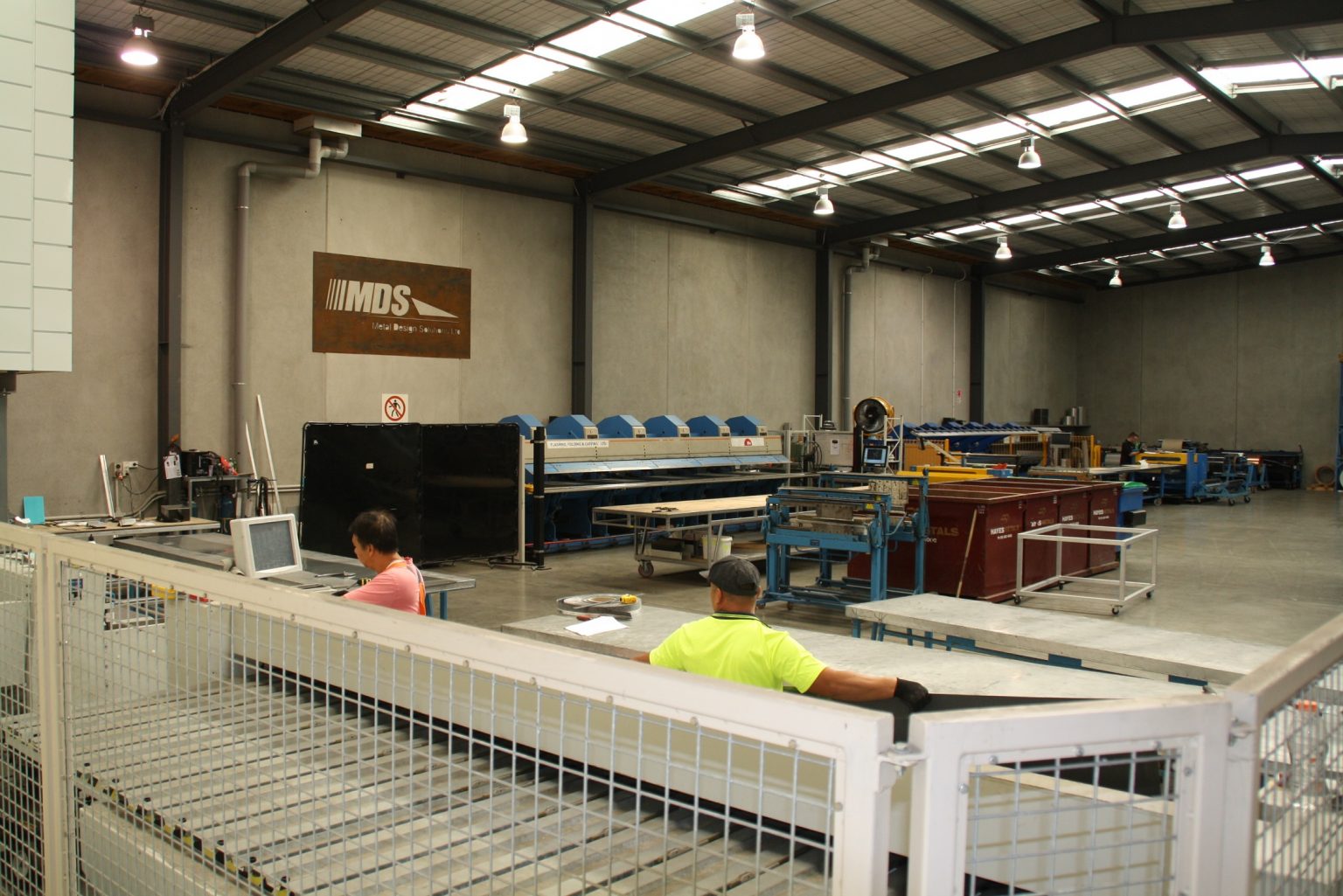

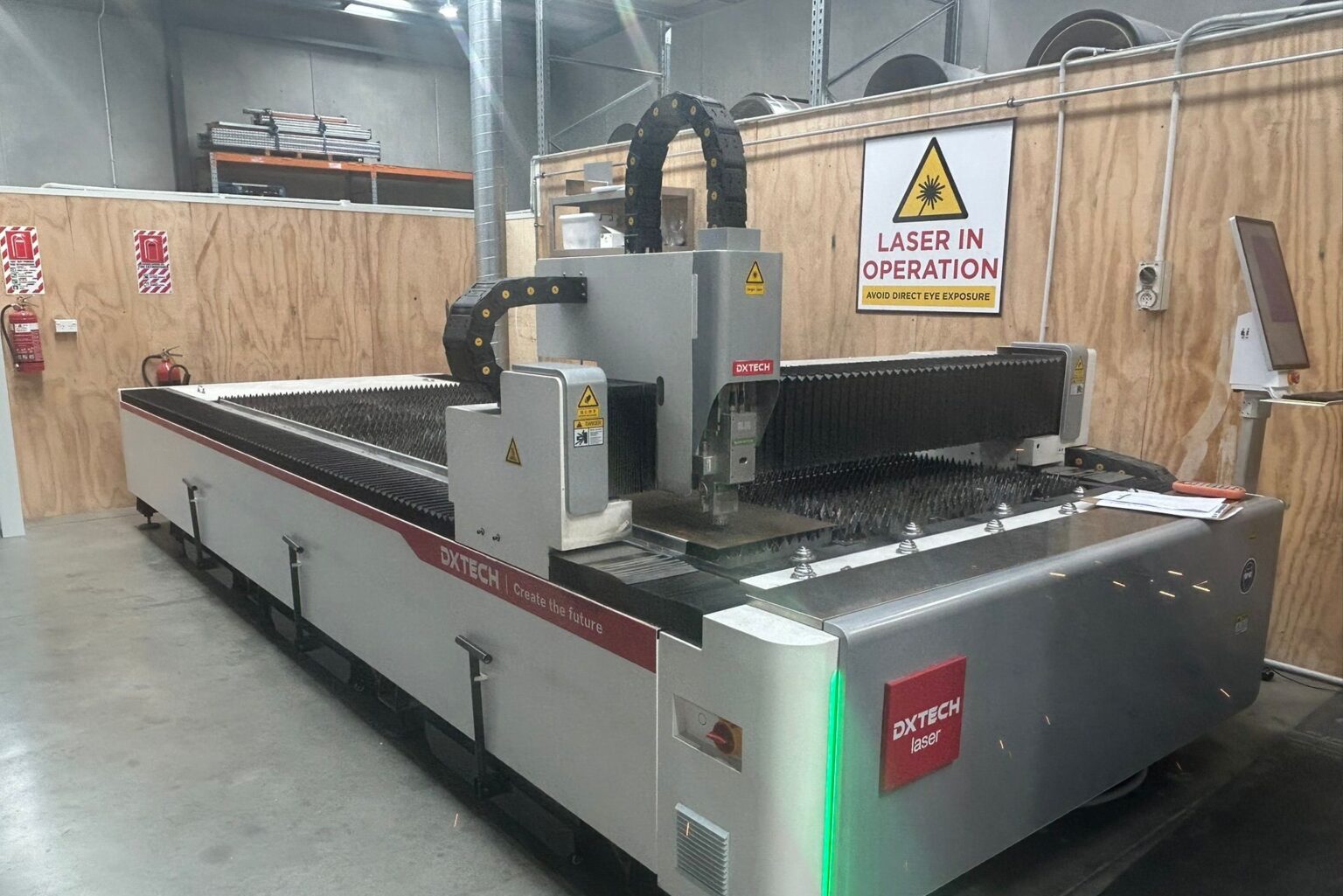

We use state-of-the-art computerised cutting, folding and welding equipment to assure you of factory finishing well beyond any normal worksite standards.

Obligation-free Quotes

 Whether you need the material to pick-up, or delivered, or installed, we’ll provide you with a professional obligation-free quote.
